30-400 m3/hProcessing Capacity
Get QuoteBALLISTICSEPARATOR
Efficient 2D / 3D / Fine Fraction Separation for Complex Waste Streams

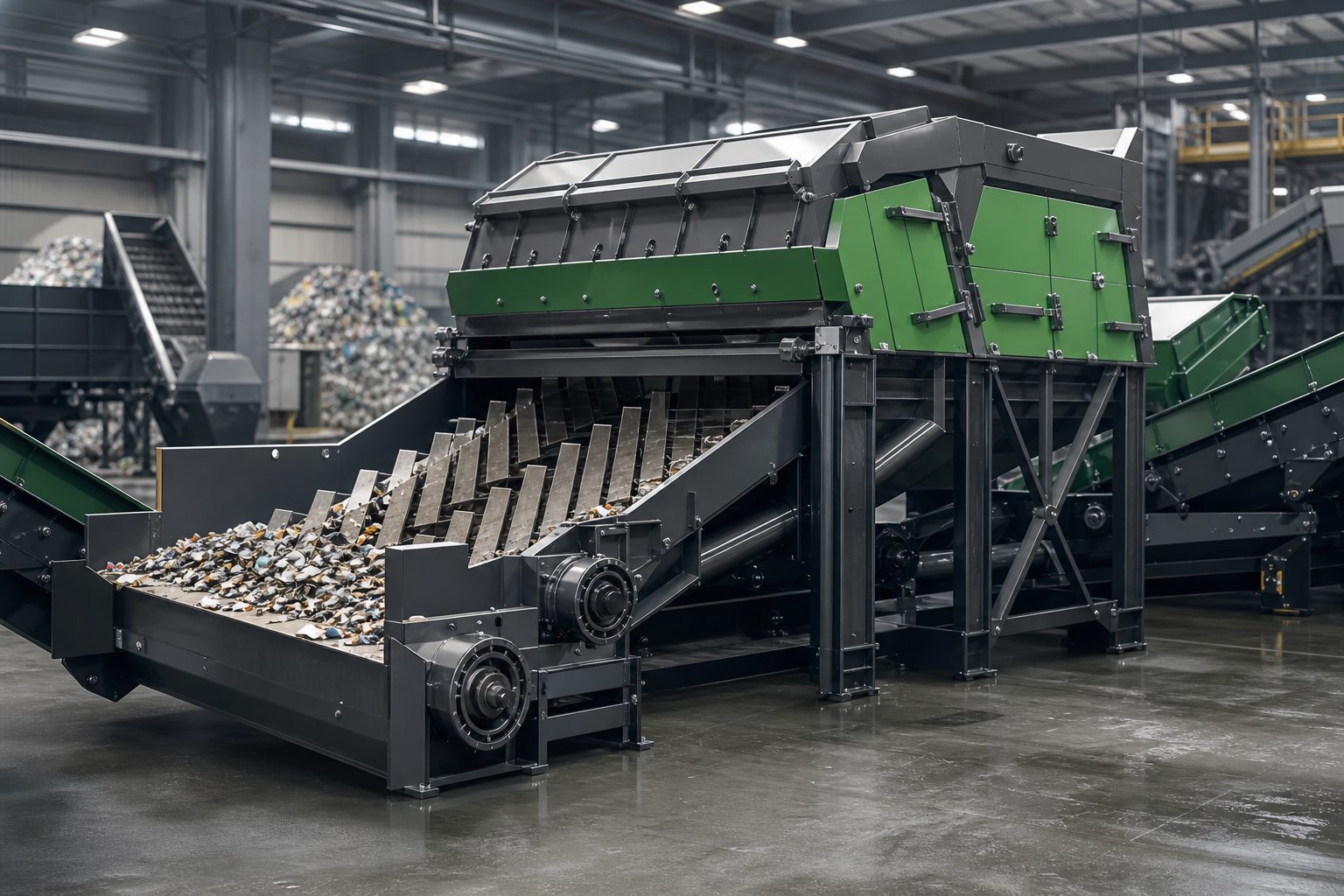

The Ballistic Separator is a core sorting machine in solid waste treatment lines. It separates mixed materials into 2D flat materials, 3D rolling materials, and fine fractions.
2D / 3D / FinesThree-way separation
After Pre-TreatmentBest process position
Product VideoSee 2D / 3D separation in action
What It Does
The ballistic separator solves the 闂佺偨鍎茬粩绶嘺t, rolling and fine materials mixed together闂?problem. It is usually installed after front-end pre-treatment to make downstream manual, air, magnetic or optical sorting easier.
Typical Materials
Construction WasteMixed stone, brick and light fraction
Landfill WasteExcavated legacy waste stream
Municipal Solid WastePre-treated mixed MSW
RDF Pre-treatment MaterialCombustible light fraction
Recyclable Mixed Waste2D and 3D recyclables
Industrial WasteMixed plant residueKey Advantages
3-Way SeparationSeparates 2D flat materials, 3D rolling materials and fine fractions in one stage.
Cleaner Downstream FlowReduces manual sorting pressure and improves air, magnetic or optical sorting efficiency.
Adjustable OperationScreen angle, paddle motion and process settings can be matched to the material condition.
Line Upgrade ReadySuitable for adding after front-end screening, shredding or crushing equipment.
Clear Process LogicGives buyers an easy-to-understand mechanical split before precision sorting.
Working Principle
The motor drives the main shaft through pulleys. The eccentric transmission and paddle assembly create a reciprocating 闂佺偨鍎茬粭宄秏ping闂?motion. Flat 2D material travels upward, 3D rolling material moves downward, and fines fall through the screen openings.
Mixed Feed
2D Flat Material 3D Rolling Material Fine Fraction
Application Scenarios
Waste Recycling PlantsResource recovery line
MSW Sorting LinesPost pre-treatment sorting
RDF Preparation LinesMid-stage fuel preparation
C&D Waste SortingConstruction light fraction
Industrial Waste SortingFactory residue sortingTechnical Parameters
| Model | Feed Size | Screen Opening (mm) | Capacity (m3/h) | Deck Length (mm) | Deck Width (mm) | Power (kW) |
|---|---|---|---|---|---|---|
| TTS1545 | Confirm by material | 25-70 | 30-150 | - | - | 15 |
| TTS1845 | Confirm by material | 25-70 | 40-200 | - | - | 18.5 |
| TTS1860 | Confirm by material | 25-70 | 40-200 | - | - | 18.5 |
| TTS2145 | Confirm by material | 25-70 | 50-250 | 4520 | 2090 | 22 |
| TTS2160 | Confirm by material | 25-70 | 50-250 | 6000 | 2090 | 22 |
| TTS2445 | Confirm by material | 25-70 | 80-300 | 4520 | 2440 | 30 |
| TTS2460Popular | Confirm by material | 25-70 | 80-300 | 6000 | 2440 | 30 |
| TTS2845 | Confirm by material | 25-70 | 100-400 | - | - | 37 |
| TTS2860 | Confirm by material | 25-70 | 100-400 | - | - | 37 |
Need to Split 2D, 3D and Fines More Clearly?
Send material photos, capacity target, moisture and upstream / downstream equipment. We will check whether a ballistic separator is the right fit.
Submit Inquiry
