2QBL Light-Duty Chain Plate Feeder
2QBL Light-Duty Chain Plate Feeder for stable continuous feeding of construction waste, municipal solid waste and recycling materials before screening, shredding and sorting equipment.
Product Details

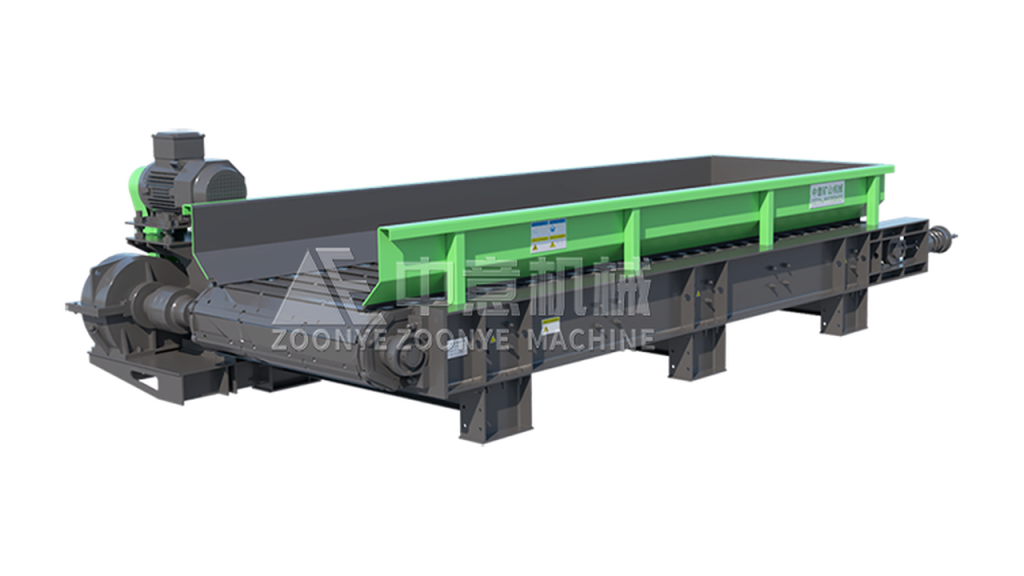

Metal Chain Plate Feeding Design
The light-duty chain plate feeder uses metal chain plates as the carrying surface. Chain bars provide traction, the frame supports impact load, and the adjustable drive keeps mixed waste moving continuously into downstream sorting equipment.
Applicable waste raw materials
1. Construction and decoration waste
Feeds concrete blocks, brick debris, tile fragments, mixed aggregates and decoration waste into screens, shredders or sorting machines.
2. Municipal solid waste sorting
Suitable for plastic film, paper, packaging waste, kitchen residue and mixed household waste before screening and separation.
3. Heavy or mixed line feeding
The metal chain plate surface handles impact load better than ordinary belt conveyors and helps stabilize feeding flow for complete sorting lines.
Working principle
The motor drives the sprocket through the reducer. The sprocket pulls the chain bars and metal plates to move in a loop, forming a continuous conveying surface. Material falls onto the chain plate and moves forward horizontally or on a slight incline. Side boards and optional sealing structures help prevent material scattering during feeding.
Product specifications
| Equipment Name | Type | Model | Overall Dimensions (L×W×H mm) | Power (kW) | Speed (m/s) | Weight (kg) | Capacity (m³/h) |
|---|---|---|---|---|---|---|---|
| Hinged Chain Plate Feeder | Light | HBL1040 | 5240×2230×1290 | 11 | 0-0.6 | 3100 | 40-160 |
| Hinged Chain Plate Feeder | Light | HBL1240 | 5240×2430×1290 | 11 | 0-0.6 | 3300 | 50-200 |
| Folded Chain Plate Feeder | Light | QBL1040 | 5230×2290×1290 | 11 | 0-0.6 | 2900 | 40-160 |
| Folded Chain Plate Feeder | Light | QBL1240 | 5230×2490×1290 | 11 | 0-0.6 | 3100 | 50-200 |
| Folded Chain Plate Feeder | Light | QBL1060 | 7230×2290×1290 | 15 | 0-0.6 | 4350 | 60-240 |
| Folded Chain Plate Feeder | Light | QBL1260 | 7230×2490×1290 | 15 | 0-0.6 | 4650 | 75-300 |
FAQ
What is the chain plate feeder mainly used for?
It is used for stable continuous feeding before waste sorting equipment, such as trommel screens, ballistic separators, air separators, shredders and manual sorting stations.
Why use metal chain plates instead of a belt conveyor?
Metal chain plates can carry heavier impact loads and sharper mixed materials. They are more suitable for construction waste, bulky mixed waste and harsh sorting-line feeding conditions.
Can the conveying speed be adjusted?
Yes. The feeder can be configured with adjustable speed. The common speed range for the listed models is 0-0.6 m/s, helping match different downstream equipment capacities.
Is it suitable for fine particles below 5 mm?
Fine particles may leak through ordinary open structures. If the project contains a large amount of fine material below 5 mm, sealing or closed structures should be added.
Can it be integrated into a complete sorting line?
Yes. The feeder can be matched with upstream loading hoppers and downstream machines including ballistic separators, trommel screens, air separators and dual-shaft shredders.
