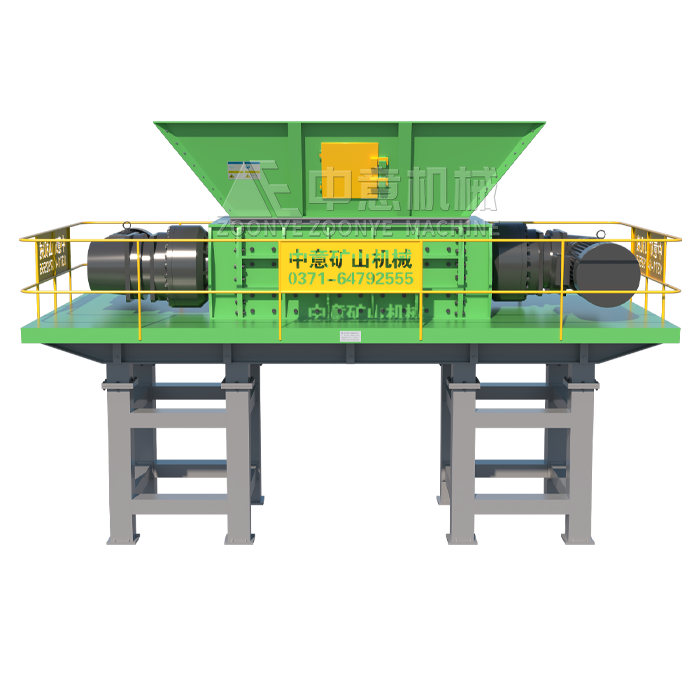

4SL Series Dual-Shaft Shredder
4SL Series Dual-Shaft Shredder for bulky waste, mixed municipal waste, plastics, wood and RDF/SRF pretreatment. Heavy-duty low-speed high-torque design with customizable cutter configuration.
Product Details

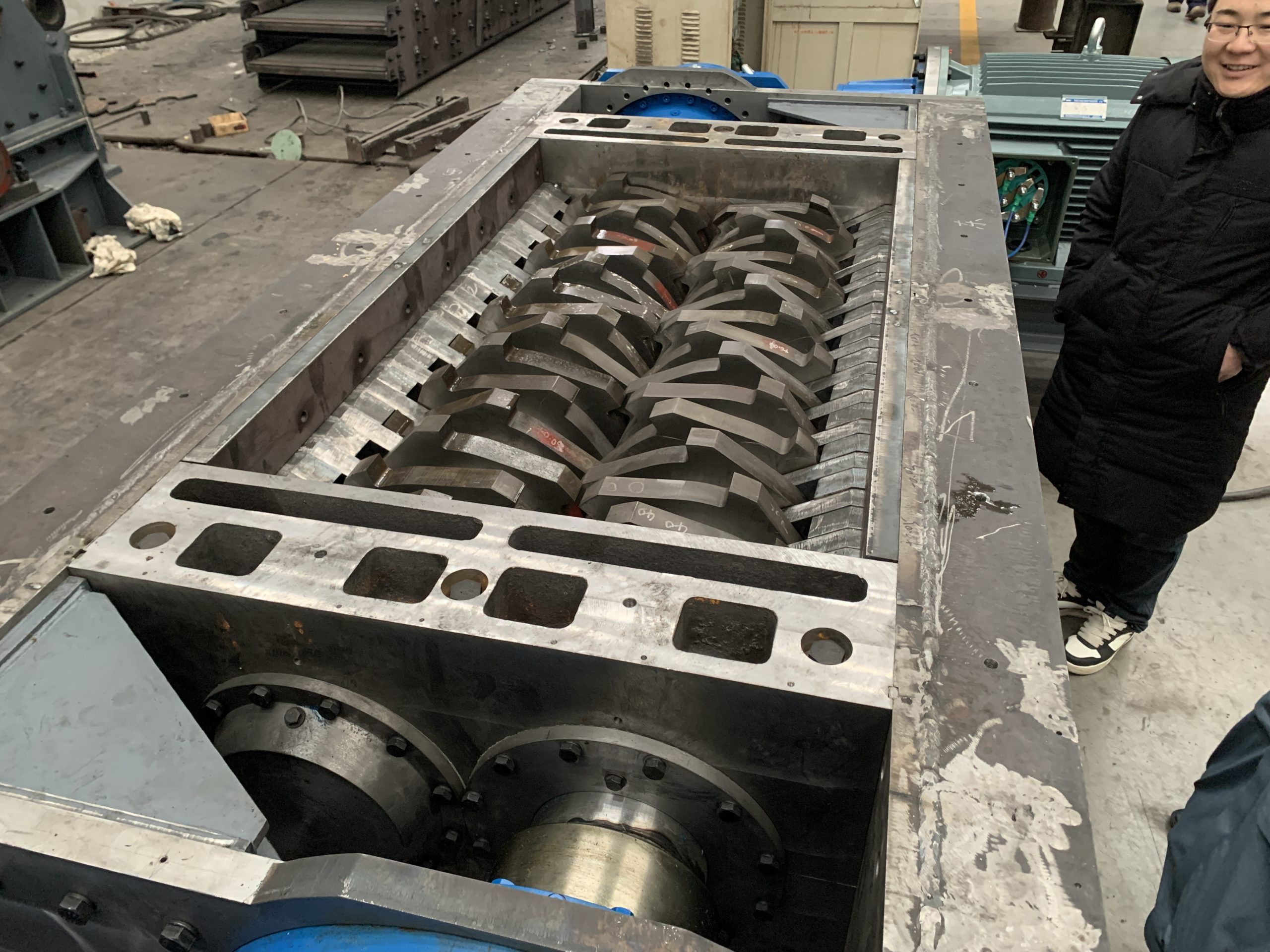

Heavy-Duty Cutting Chamber
The 4SL dual-shaft shredder uses two low-speed, high-torque shafts to bite, tear and shear bulky materials before sorting, screening or RDF preparation. The rigid welded body, replaceable cutters and heavy reducer configuration are designed for continuous industrial operation.
Applicable waste raw materials
1. Bulky waste and mixed municipal waste
Reduces large bags, household bulky waste, packaging materials and mixed waste into a more stable size for downstream sorting lines.
2. Plastic, paper, wood and light industrial waste
Suitable for pretreatment before manual sorting, magnetic separation, air separation and screening, helping improve feeding continuity.
3. RDF/SRF preparation and recycling line pretreatment
The final particle size can be adjusted by cutter layout, shaft speed and screen or discharge configuration according to the project process.
Working principle
After material enters the hopper, two counter-rotating cutter shafts pull the material into the cutting chamber. The cutters tear and shear the material against each other, while the reducer provides strong torque at low speed. Oversized pieces continue to be grabbed and cut until they can pass through the discharge opening, creating a controlled feed size for the next equipment.
Product specifications
| Equipment Model | Shredding Chamber | Cutter Type | Drive Configuration | Discharge Size | Application | Capacity |
|---|---|---|---|---|---|---|
| 4SL Series | Customized by feed size | Replaceable alloy cutters | Dual motor + reducer | Customized | Bulky waste / MSW / plastics / wood | Project-based |
| Heavy-duty option | Reinforced welded body | Wear-resistant cutter stack | High-torque low-speed drive | Customized | RDF/SRF pretreatment and sorting line feeding | Project-based |
| Line module option | Matched with conveyor and hopper | Configured by material | Electrical control available | Customized | Complete waste sorting production line | Project-based |
FAQ
What materials can the dual-shaft shredder process?
It is commonly used for bulky waste, mixed municipal waste, plastic products, packaging waste, wood, paper, light industrial waste and RDF/SRF pretreatment materials. The final configuration should be selected according to material hardness, moisture and impurity content.
Can the output size be customized?
Yes. The output size can be adjusted through cutter width, cutter tooth shape, shaft speed, chamber design and discharge configuration. For production-line projects, WANGAO can match the shredder with downstream screening and sorting equipment.
Is it suitable for continuous industrial operation?
The machine is built with a rigid frame, heavy-duty reducers and low-speed high-torque shredding. It is suitable for continuous pretreatment work when the model, cutter layout and feeding method are selected correctly.
How do I choose the correct model?
Please provide the material type, bulk density, maximum feed size, expected output size, required capacity and site layout. Engineers can then recommend the shaft length, cutter set, motor power and feeding/discharge arrangement.
Can it be integrated into an existing sorting line?
Yes. The dual-shaft shredder can be used as a pretreatment module before conveyors, magnetic separators, screens, air separators and manual sorting stations. The inlet hopper, discharge conveyor and control logic can be adjusted to fit the existing line.
